Location：Home > Products > Hall Effect Test System > HSPM Series
-
HSPM-05PS

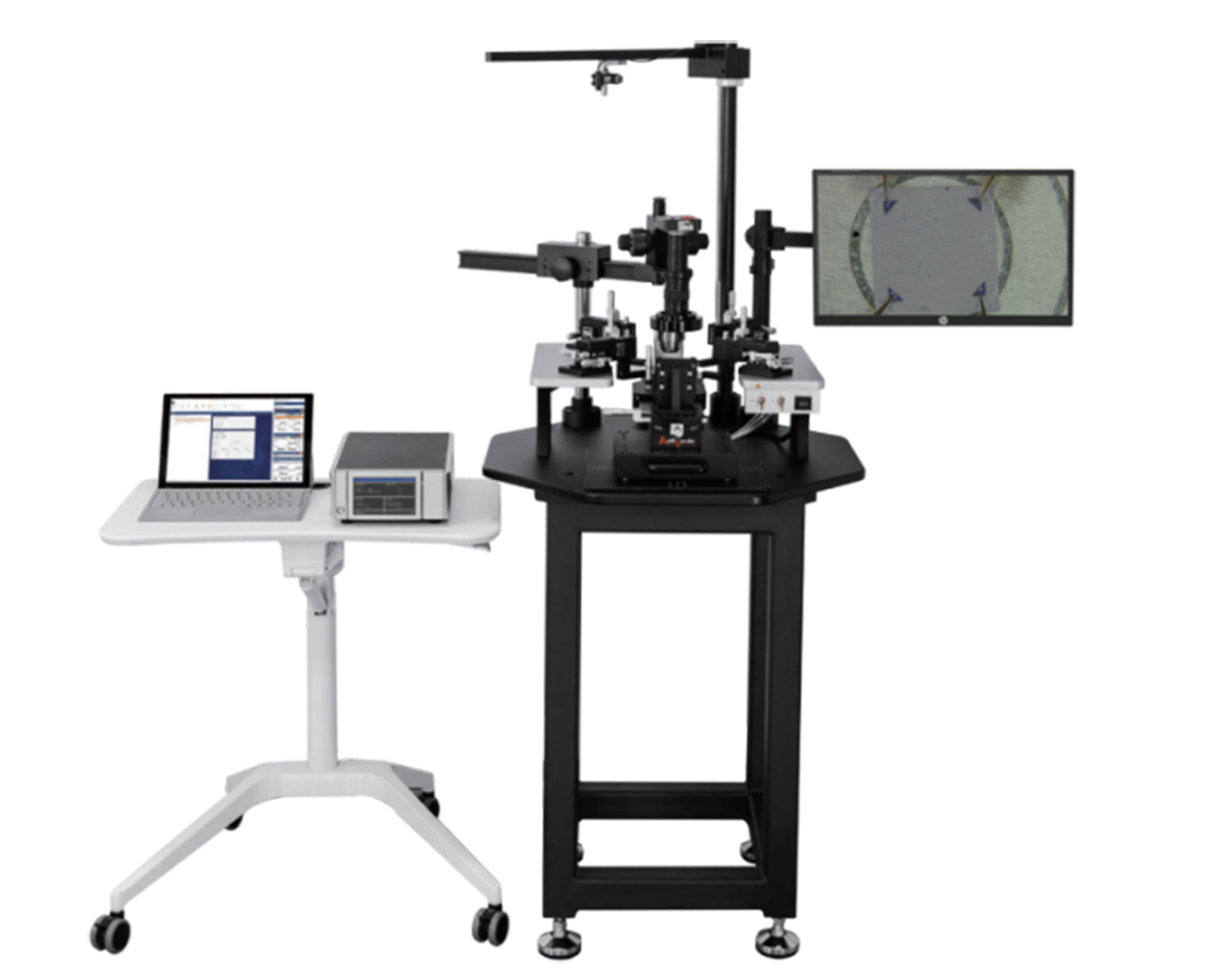

HSPM-05PS Room Temperature Probe Hall Test System provides a vertical magnetic field environment for 8 inch samples and devices to be tested. It uses a porous partition to control gas adsorption and fixation, and can automatically control the forward and backward motion of the permanent magnet and N.S. pole flip, and can be accurately positioned with a magnetic field size of 0.5T .
Click here for details -
HSPM-05VT

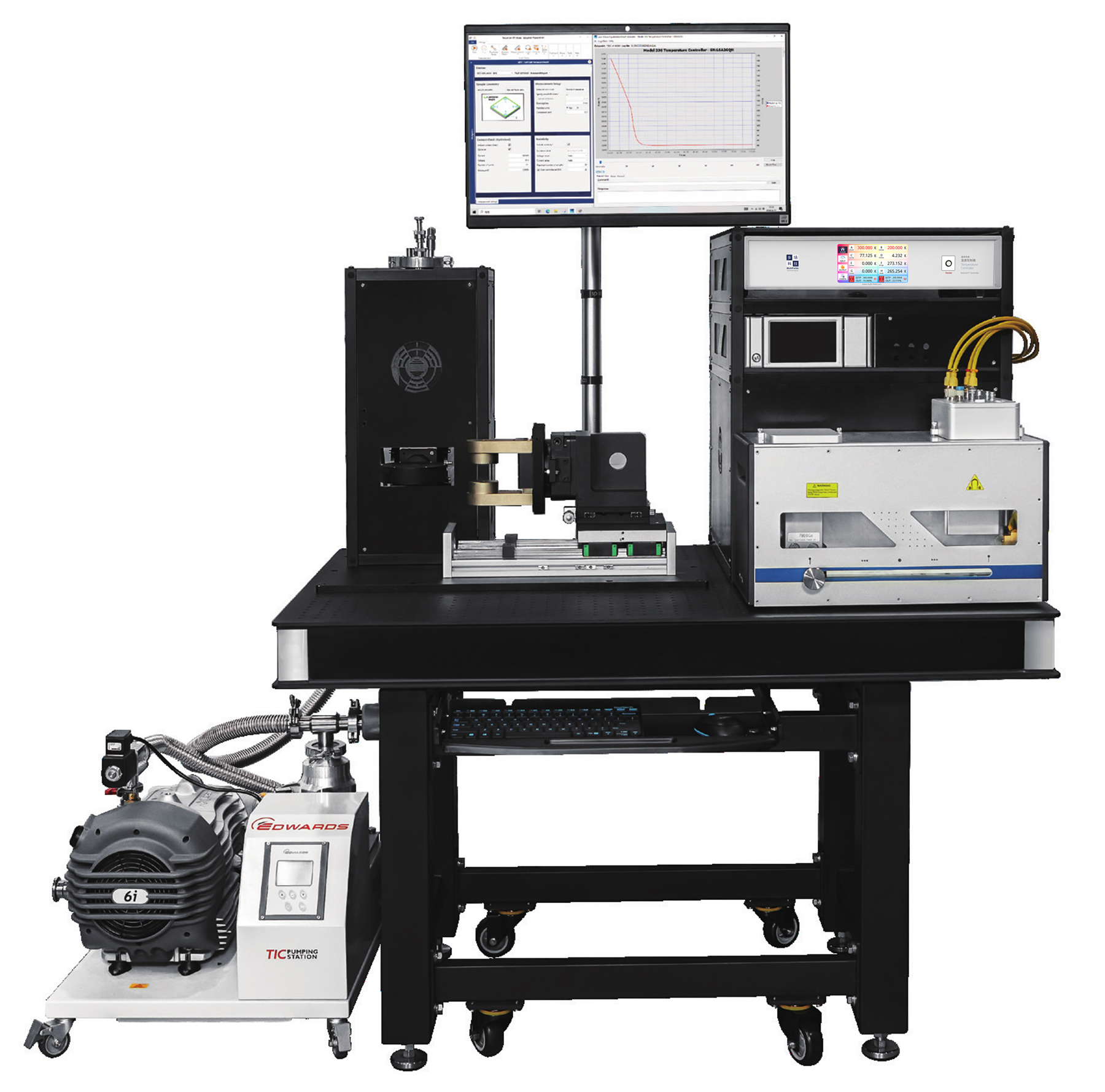

The HSPM-05VT Variable Temperature Hall Test System provides a continuous variable temperature, 0.5T vertical magnetic field test environment from 80K to 500K for testing Hall parameters at variable temperatures. Dual-layer sample holder design, the bottom of the optical sample holder, through the addition of four probes plus four terminal holder cover to achieve the probe sample holder function. The terminal block supports the addition of probes and can be converted to a six-probe sample holder, which can simultaneously meet the testing of Hall Bar and Vanderbilt samples.
Click here for details -
HSPM-07RT

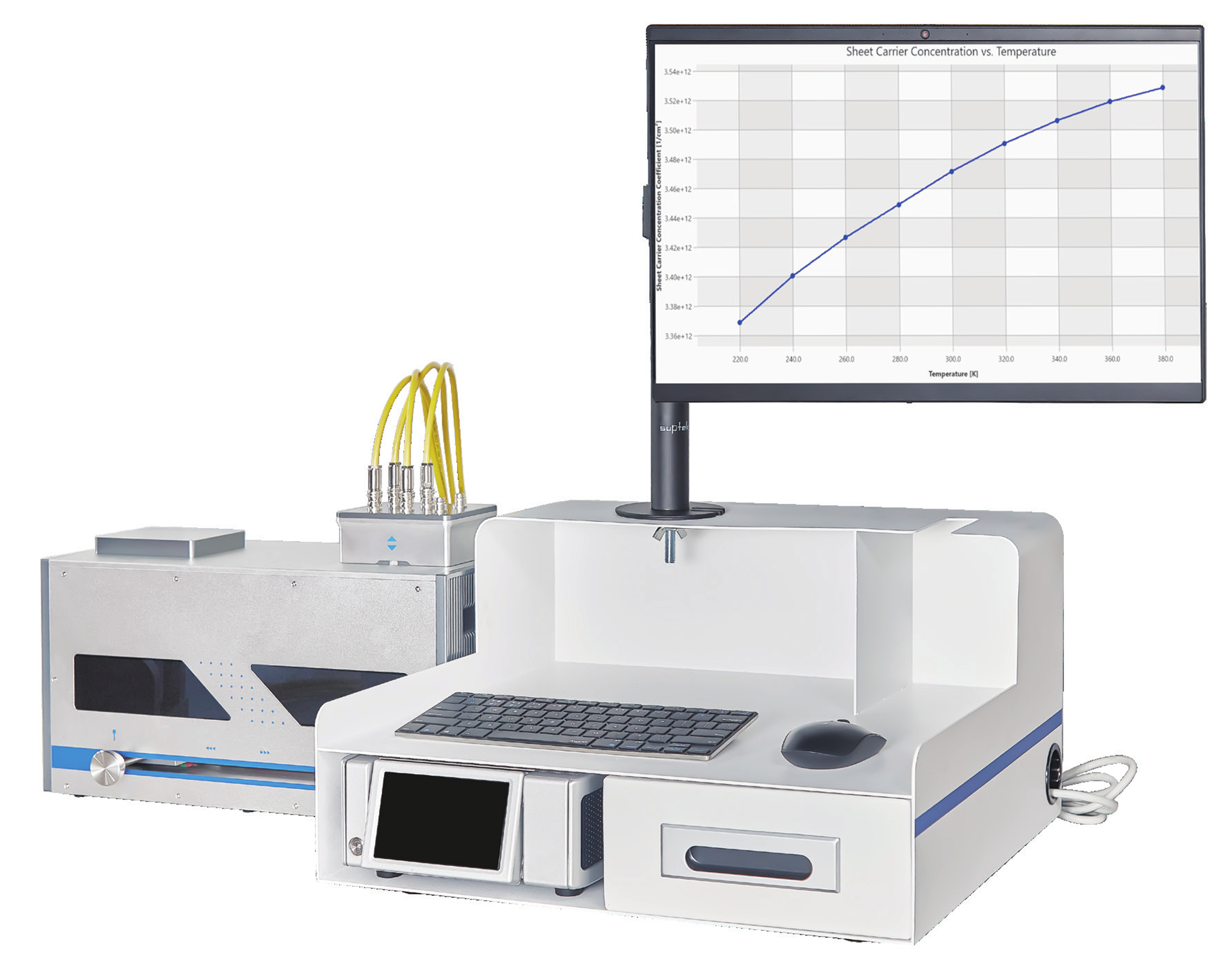

HSPM-07RT Room Temperature Permanent Magnet Hall Test System Magnetic Field Size: 0.7T; Temperature Option: Room Temperature, 77K (Liquid Nitrogen Single Point Option), Sample Contact: Four Probe Sample Card or Welded Sample Card. HSPM-07RT room temperature permanent magnet Hall test system consists of high-precision Hall tester, room temperature permanent magnet fixture platform, test computer and software, can be in a fixed magnetic field to achieve the Hall effect of the measurement, the system structure desktop structural design, small size, high testing efficiency, is the laboratory rapid testing and factory quality inspection of choice. The system has 77K liquid nitrogen single-point option, providing samples at 77K low temperature to complete the Hall effect measurement.
Click here for details
- Page 1 of 1
