Product features：

· Temperature range: 14K-1073K (The temperature range varies by model);
· Multiple models are available;
· Complies with IEC 751 standard;
· High vibration resistance;
· Fast response speed;
· High thermal shock resistance;
· Excellent chemical resistance;
· High repeatability: ±5 mK @77 K;
· It can be applied in a low-temperature environment with a magnetic field when the temperature exceeds 40K;

· Provide calibration services.

Technical Parameter Table：

Standard curve: IEC751
Recommended excitation current: 1mA
Consumption at the recommended excitation current: 100 µW @ 273 K
Thermal response time: PT-1612 1.75 s @ 77 K, 12.5 s @ 273 K; PT-1805 2.5 s @ 77 K, 20 s @ 273 K
Repeatability: ±5 mK @ 77 K. The sensor was subjected to 10 repeated thermal shocks from room temperature to liquid nitrogen to obtain this data
Recommended soldering method: Use ordinary solder with a maximum temperature not exceeding room temperature. High-temperature solder can be used when the maximum temperature does not exceed 500K. Use laser brazing at a maximum temperature exceeding 500K

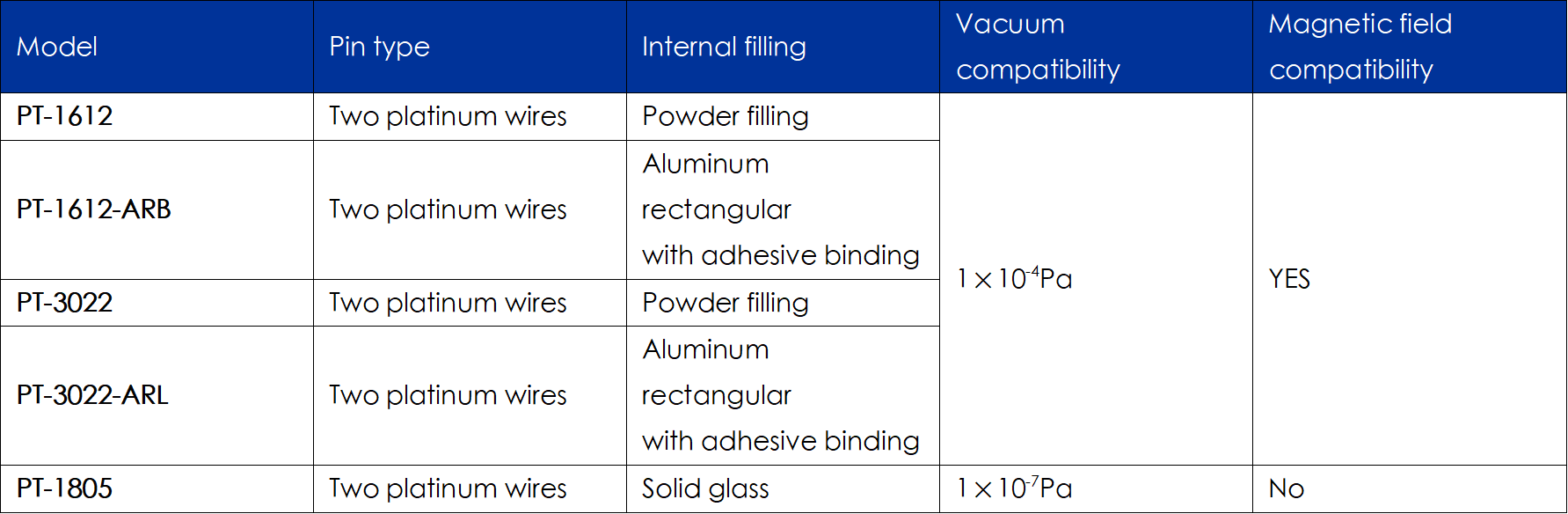

Materials and compatibility：

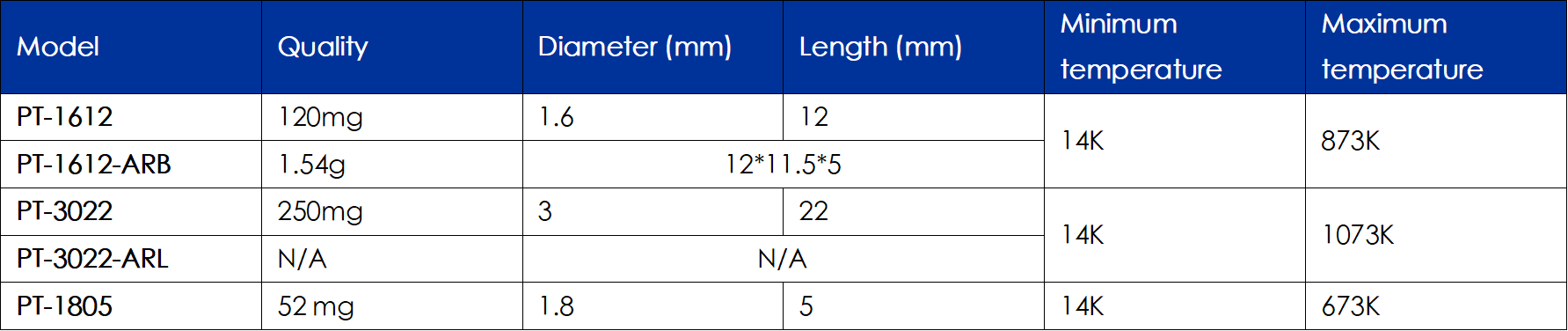

Physical specifications and temperature range：

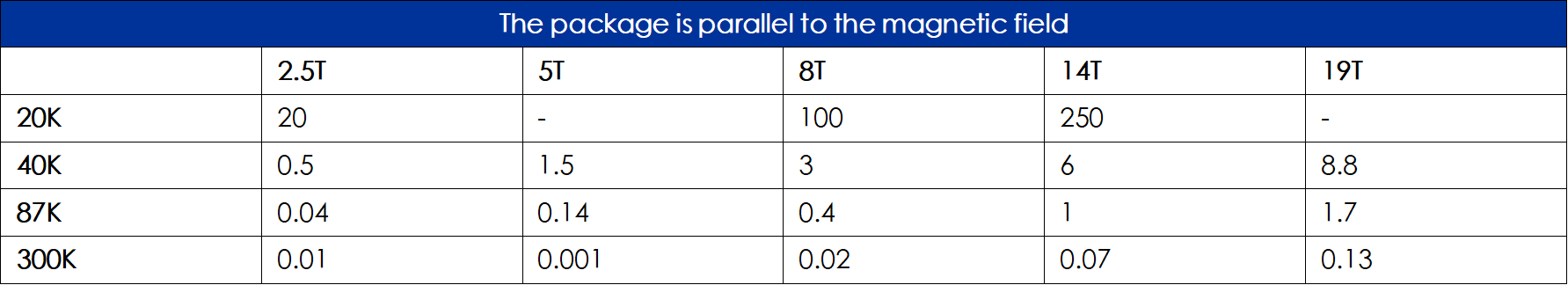

Magnetic field, temperature error ΔT/T (%)：

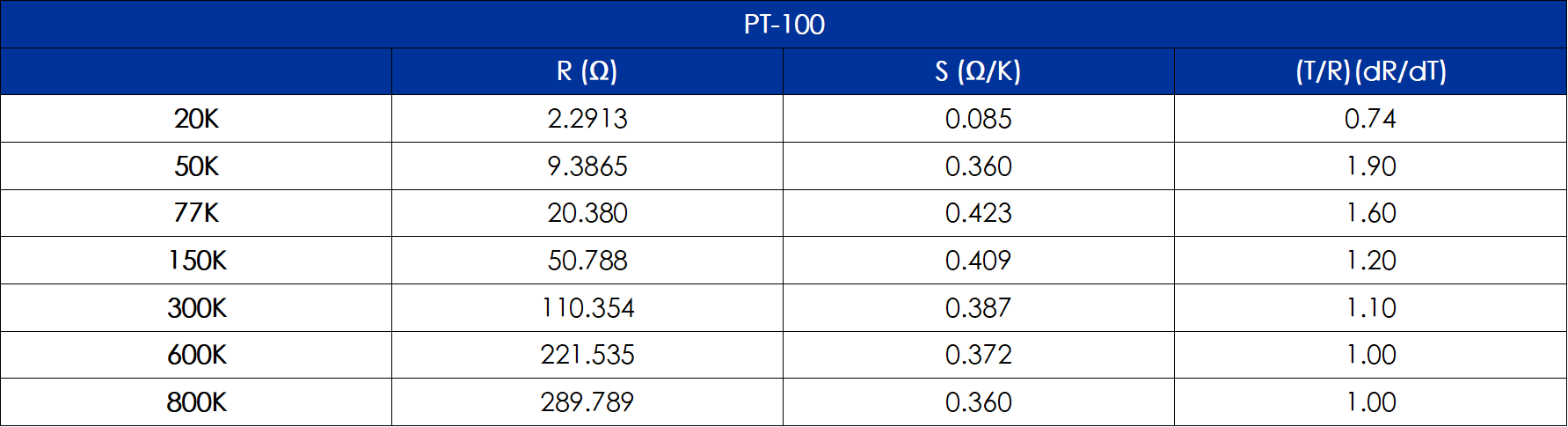

Temperature response schedule (typical sensor)：

Uncalibrated sensor accuracy：

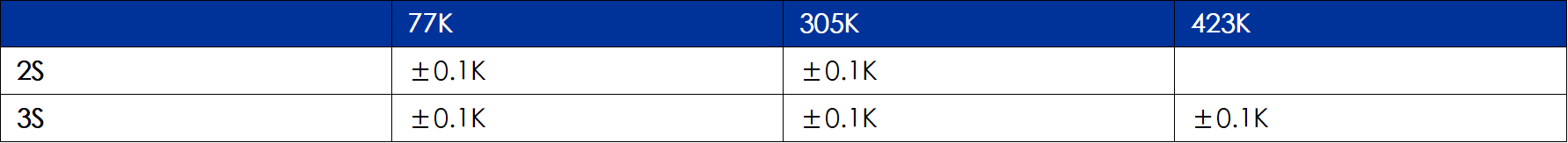

2-point and 3-point calibration accuracy：

Note:

The 2S calibration is carried out at two temperature points, 77K and 305K. The accuracies listed in the table are the accuracies after calibration at these two points.

The 3S calibration is carried out at three temperature points: 77K, 305K and 423K. The accuracies listed in the table are the accuracies after calibration at these three points.

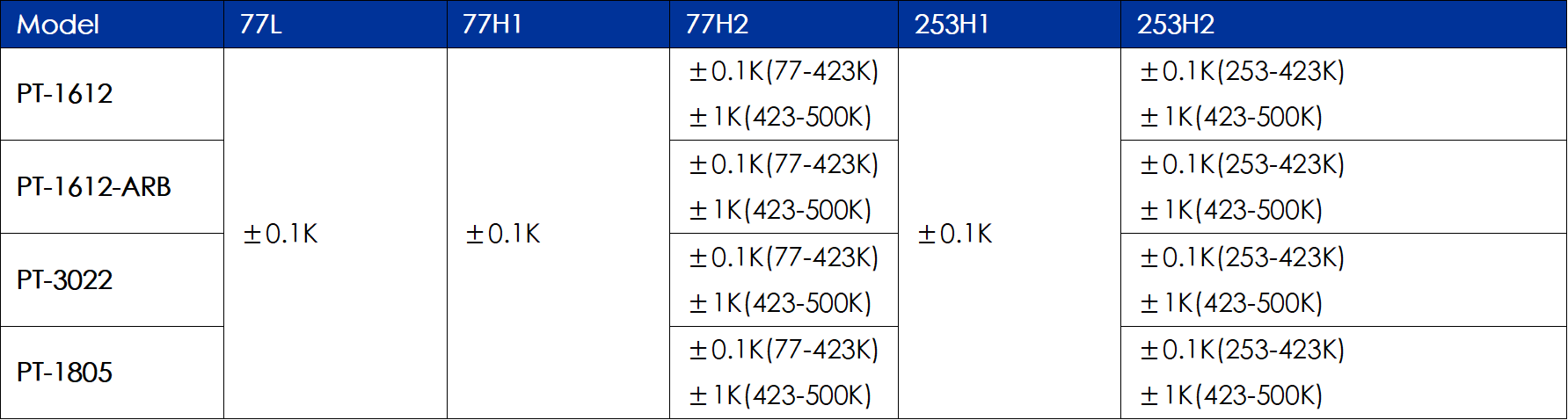

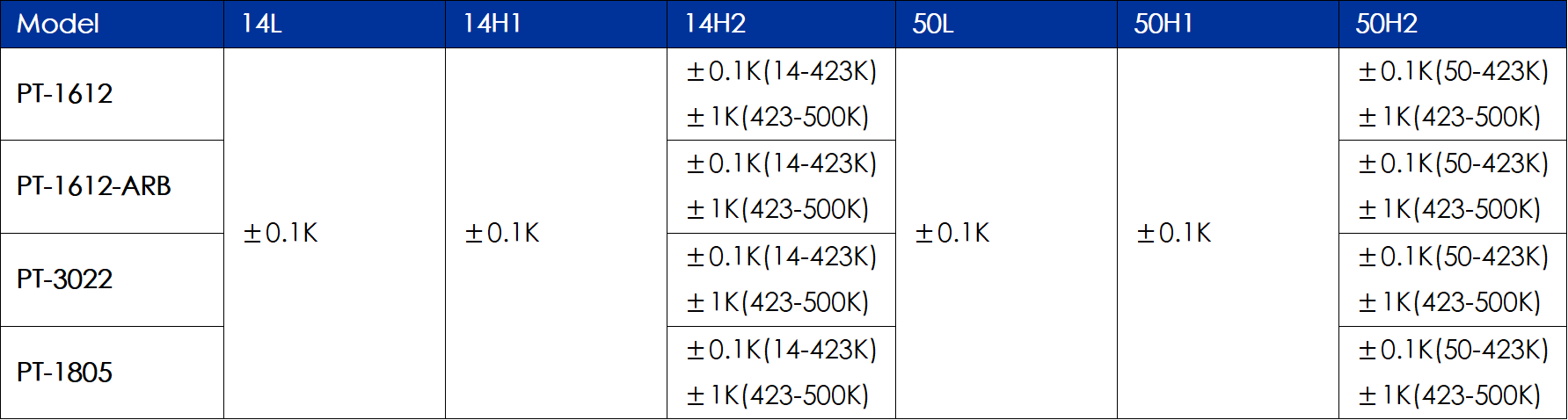

Calibration accuracy：L=325K, H1=423K, H2=500K
