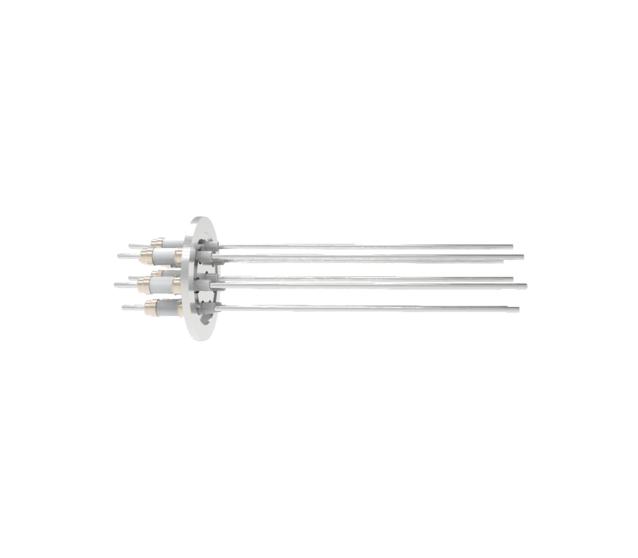

SST Vacuum Feedthrough FA14234-03
SST Vacuum Feedthrough，Model：FA14234-03，KF40，8-pin，0.094" conductor diameter，10kV，16.5A，nickel conductor
Location：Home > Products > SST Vacuum Probe
SST Vacuum Feedthrough FA14234-03 Overview
All components of SST vacuum feedthroughs are customizable! We periodically update our catalog items and supply fully custom feedthroughs and hermetic connectors. Should your project require revisions to any listed specifications, please contact us via the contact form on this page.
SST Vacuum Feedthrough FA14234-03 Technical Parameter
Parameters & Specifications:
| Number of Conductors | 8个 |
| Style | Power |
| Volts | 10,000 volts |
| Amperes | 16.5 Amperes |
| Mounting Style | KF40 |
| Conductor Diameter | 0.094 inch |
| Conductor Material | Nickel |
| Temperature Range | -25 to 205 °C |
| Max. Pressure | 0 |
| Plug | Available |
SST Vacuum Feedthrough FA14234-03 Basic Configuration
Semiconductor
IC
Wafer
