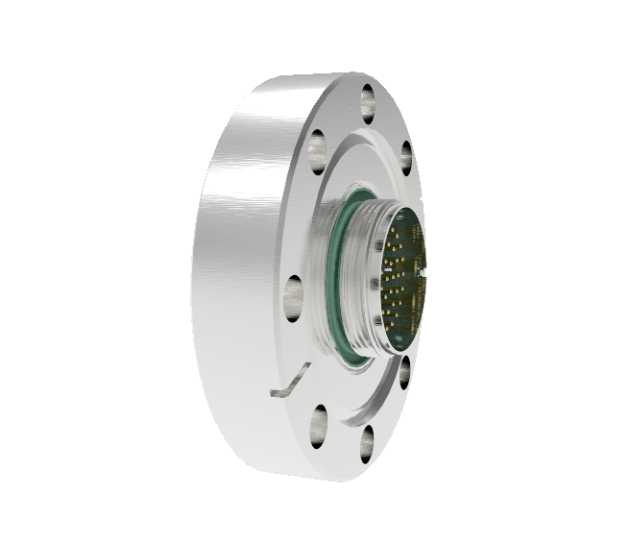

SST Vacuum Feedthrough FA14214
SST Vacuum Feedthrough, Model: FA14214 41-pin circular connector, Series 26482, 1kV, 3A, gold-plated conductors, double-ended, CF3.375
Location：Home > Products > SST Vacuum Probe
SST Vacuum Feedthrough FA14214 Overview
All components of SST vacuum feedthroughs are customizable! We periodically update our catalog items and supply fully custom feedthroughs and hermetic connectors. Should your project require revisions to any listed specifications, please contact us via the contact form on this page.
SST Vacuum Feedthrough FA14214 Technical Parameter
Specifications:
| Number of Conductors | 41 |
| Style | Circular - Series 26482 |
| Voltage | 1,000 Volts |
| Current | 3.0 Amperes |
| Mounting Style | CF3.375 |
| Conductor Diameter | 0.040 inch |
| Conductor Material | 300 series stand。STl。 |
| Temperature Range | -269 to 450 °C |
| Max. Pressure | 350 lbs |
| Plug | Available |
SST Vacuum Feedthrough FA14214 Basic Configuration
