Zirnox Zirconium Nitride Low Temperature Sensors
Zirnox is a thin-film resistive temperature sensor that operates over a wide temperature range (0.02K to 450K) and has negligible calibration displacement when exposed to magnetic fields and ionizing radiation. Composed of zirconium nitride, the material and physical properties of the sensor allow for fast thermal response, exceptional heat transfer and a range of mounting options to suit your application.
Click here for details -
RO-600 Ruthenium Oxide Temperature Sensor
RO-600 Ruthenium Oxide Ultra Low Temperature Temperature Sensor is a thick film resistive sensor with an operating temperature range of 0.02K-20K. It has a fast temperature response, small size for easy installation, and is the best choice of temperature sensor for He3 chillers and dilution chillers.
Click here for details -
Si-540 Silicon Diode Low Temperature Sensors
Scientific Instruments Model Si-540 Silicon Diode Sensors are compact and operate over the 1.5K to 450K temperature range. They are linear over a wide range of temperatures, highly sensitive in the lower range, and interchangeable with standard V/T curves.
Click here for details -
RO-215 Ruthenium Oxide Temperature Sensor
Scientific Instruments cryogenic sensors. The RO-215 ruthenium oxide sensors are thick-film resistors following a single resistance-temperature curve. They deliver excellent performance in magnetic field environments. The RO-215 features similar physical specifications with higher calibration accuracy and reproducibility better than 20mK.
Click here for details -

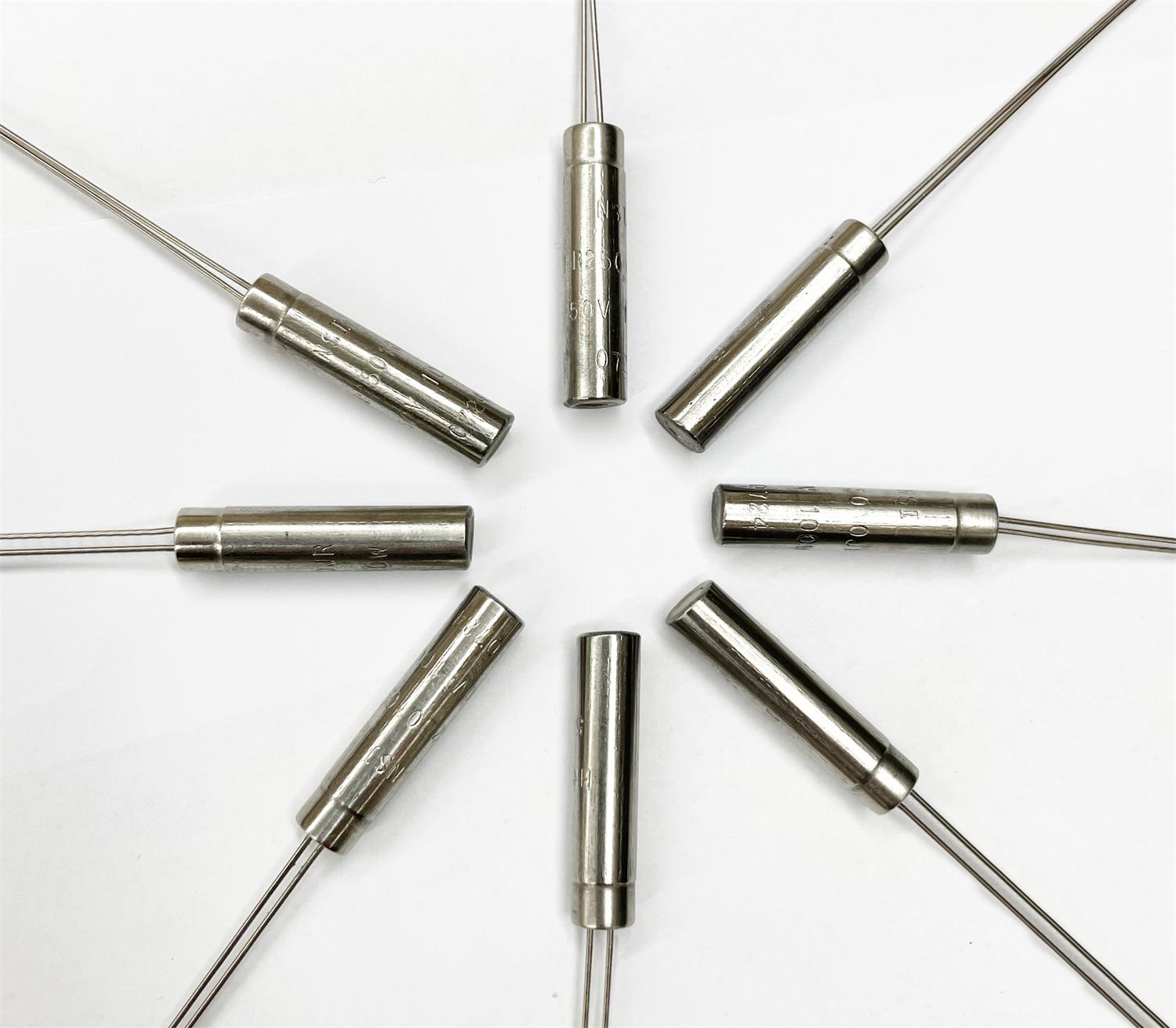

PT-100 platinum resistance low-temperature sensor
The wound PT-100 platinum resistance sensor adopts a ceramic or glass tube packaging method, featuring a solid and stable structure and a wide temperature measurement range. All platinum resistance sensors we provide comply with the IEC751 industrial standard, with a measurement temperature range from 14K to 1073K. For the convenience of customers' installation and use, we can provide unique ARB packaging methods and brazing process leads. Platinum resistance sensors have a constant sensitivity (dR/dT) within the measurement temperature range, good interchangeability, high stability compared to diode sensors, and are less prone to damage. In low-temperature environments above 40K, it is less affected by magnetic fields and can be applied in temperature environments with magnetic fields.
Click here for details -
Cylindrical heater
The cylindrical heater can be used together with all temperature controllers and has a rated power in closed air. In low-temperature applications, the heater can perform many operations to the rated value when properly heated or in the liquid.
Click here for details
- Page 1 of 1
