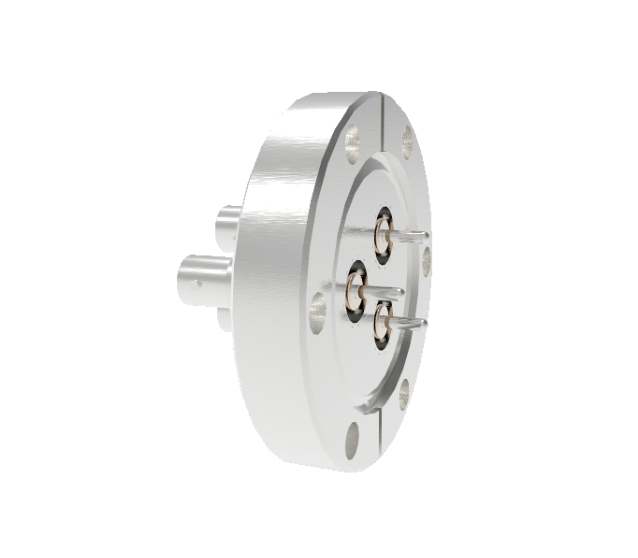

SST Vacuum Feedthrough FA11180
SST Vacuum Feedthrough, Part No.: FA11180MHV grounded shield, flush mount, 5kV, 3.6A, 0.094, 304 stainless steel, 3 conductors, CF2.75 flange, without plug
Location：Home > Products > SST Vacuum Probe
SST Vacuum Feedthrough FA11180 Overview
All components of SST vacuum feedthroughs are customizable! We periodically update our catalog items and supply fully custom feedthroughs and hermetic connectors. Should your project require revisions to any listed specifications, please contact us via the contact form on this page.
SST Vacuum Feedthrough FA11180 Technical Parameter
Specifications:
| Number of Conductors | 3 |
| style | Medium & High Voltage |
| shield | Ground |
| Single-ended / Double-ended | Single |
| Voltage | 5000 Voltage |
| Current | 3.6 Amps |
| Mounting Style | CF2.75 |
| Temperature Range | -269 to 450 °C |
| Maximum Pressure | 1400 lbs |
| Plug | Available |
| Impedance | Mismatch |
